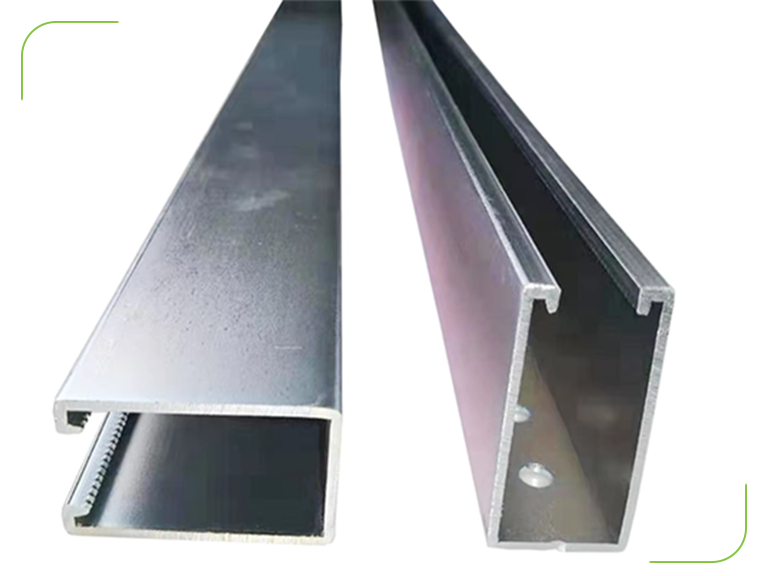

Home - ProductsC Section profiles are a foundational component of modern solar mounting structures, delivering strong structural support and efficient load distribution for photovoltaic (PV) installations. These cold-formed steel profiles, shaped like the letter “C,” are widely used as purins, rafters, bracing members, and columns in both rooftop and ground-mounted solar systems.

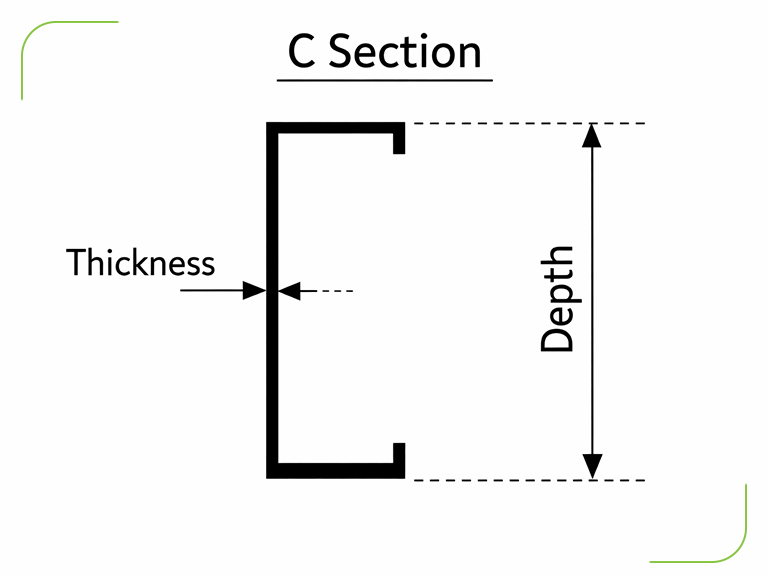

| SECTION | NAME | RANGE | THICKNESS RANGE (mm) | YIELD STRENGTH |
|---|---|---|---|---|
| C Section | WEB | 60 - 250 mm | 2.5 mm Maximum | 195 - 345 MPa |
| FLANGE | 30 - 80 mm | |||
| LIP | 5 - 20 mm |

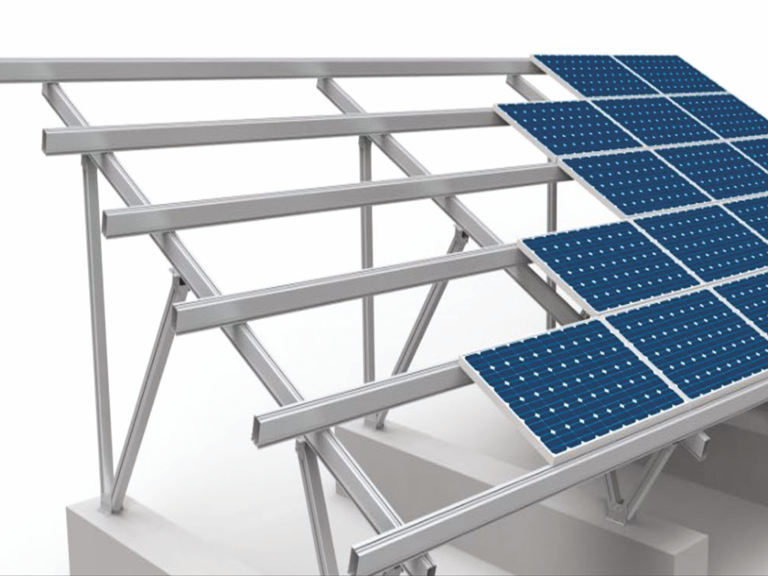

High load-bearing strength
Excellent rigidity
Multiple sizes and thicknesses
Ideal for beams, vertical posts
Cross-supports
Hot-dip galvanized for longevity
Solar mounting C Sections provide a blend of strength, durability, and cost-effectiveness:
Engineered Strength
Designed to withstand wind uplift, dynamic loads, and long-term environmental stresses.
Galvanized & Weather-Resistant
Typically manufactured from galvanized or coated steel to resist corrosion in outdoor conditions.
Efficient Installation
Pre-punched holes and modular design reduce installation time and labor costs.
Versatile Applications
Suitable for commercial rooftops, industrial sheds, and utility-scale solar farms where robust support is essential.
