Home - Products & SolutionsHAT Sections (also known as Top-Hat Sections) are specially engineered profiles used in solar mounting structures where enhanced rigidity and precise panel alignment are required. Their unique shape provides superior stiffness while minimizing material usage, making them an efficient choice for modern solar installations.

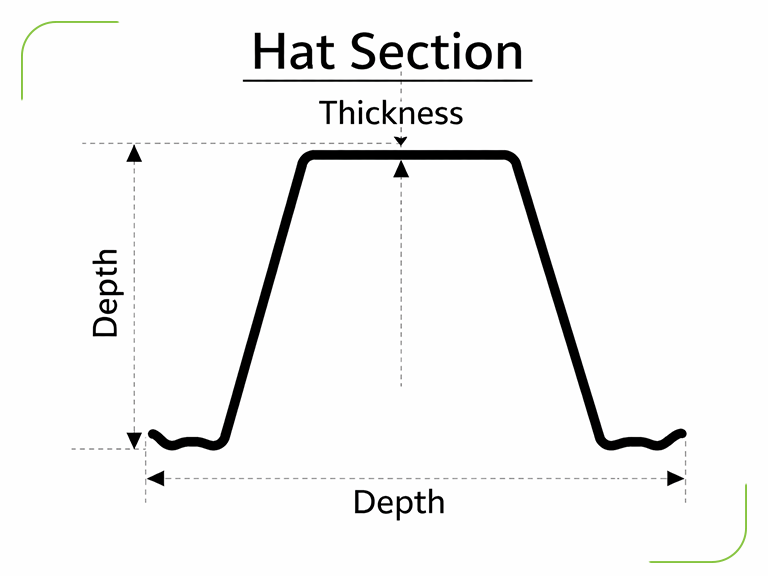

| SECTION | NAME | RANGE | THICKNESS RANGE (mm) | YIELD STRENGTH |
|---|---|---|---|---|
| Hat-Section | HEIGHT | 40 - 150 mm | 2 mm Maximum | 195 - 550 MPa |
| TOP WIDTH | 30 - 90 mm | |||
| BOTTOM LAND | 15 - 40 mm | |||
| LIP | 5 - 12 mm |
Uniform load distribution
Reduced overall structure weight
Easy to install & transport
High corrosion resistance
Suitable for both ground
Rooftop applications

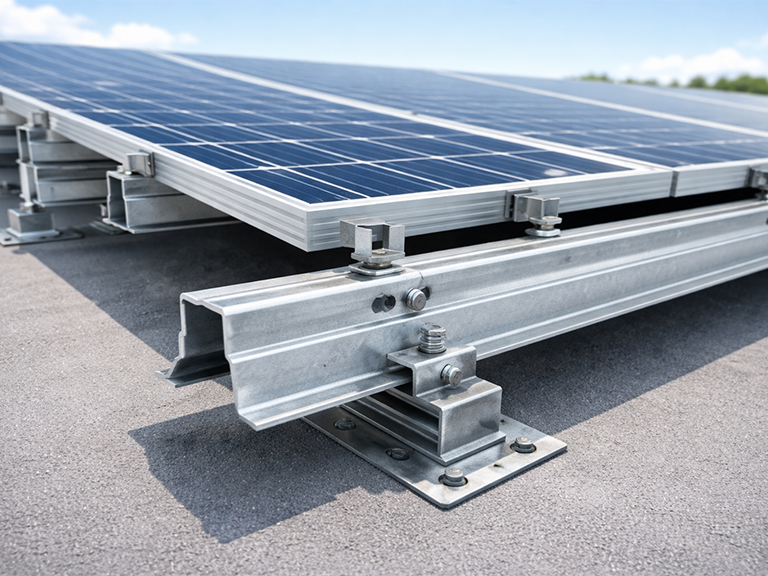

Solar mounting Hat Sections offer enhanced stability, lightweight performance, and excellent structural efficiency for modern PV installations:
Engineered Structural Stability
Designed with a ribbed profile that increases load-bearing capacity while maintaining lightweight performance. Ideal for managing wind pressure and structural movement.
Galvanized & Corrosion-Resistant
Manufactured from galvanized, galvalume, or coated steel to provide superior protection against rust, moisture, and harsh outdoor environments.
Fast & Flexible Installation
Pre-punched slots and precision roll-formed design enable quick alignment, reduced fabrication work, and lower installation costs.
Multi-Application Compatibility
Perfect for rooftop solar systems, carport structures, industrial sheds, and ground-mounted solar projects where lightweight yet strong support is required.
